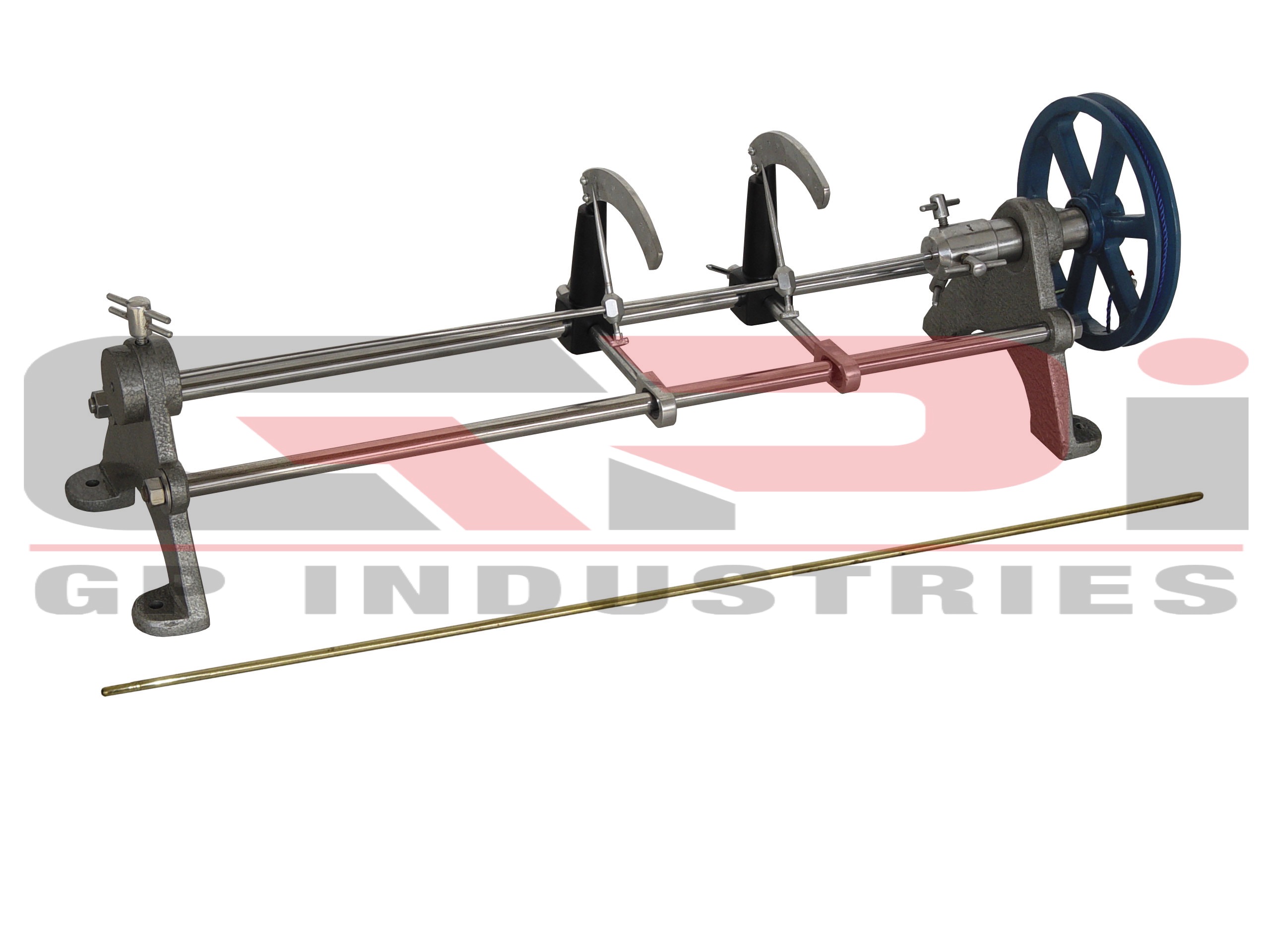

TORSION APPARATUS (HORIZONTAL)

SKU: GP0242

Searle’s pattern, two cast iron feet each with 3 through holes and grub securing screws, separated by 2 supporting rods approximately 700mm long one of which is graduated in cms and mms, wheel 165mm dia, over groove moving in ball bearings, mounted on front foot, with spindle carrying split collect chuck for holding one end of test rod 55cms long 5mm dia, other end supported with clamping block through rear foot. With two aluminium scales graduated 30-0-30 in single degrees, mounted on pillar supports, which are adjustable along the rod, two pointers with clamp for attaching to specimen, one each of Brass and Steel rods, cord and hook for carrying masses but w/o weights.
